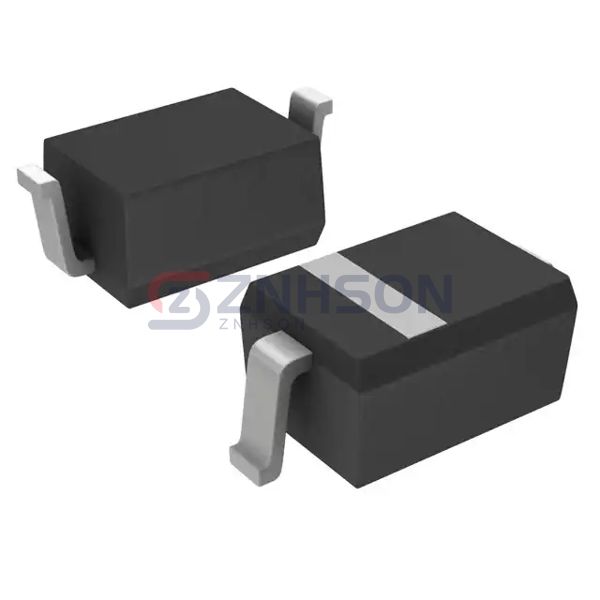

NSR1020MW2T1G
onsemi
onsemi
DIODE SCHOTTKY 20V 1A SOD323
$0.39
Available to order
Reference Price (USD)
3,000+
$0.06688
6,000+
$0.06048
15,000+
$0.05408
30,000+
$0.05088
75,000+
$0.04768
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with onsemi's NSR1020MW2T1G Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust onsemi for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 540 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 µA @ 15 V
- Capacitance @ Vr, F: 29pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C (Max)
Related Products
Panjit International Inc.
SR56F-AU_R1_000A1
Taiwan Semiconductor Corporation
ES1B R3G
onsemi
FSV8100V
Vishay General Semiconductor - Diodes Division
BYV26C-TR
Comchip Technology
1N4006-G
Vishay General Semiconductor - Diodes Division
BYM07-200-E3/98
Nexperia USA Inc.
BAS316,135
Diotec Semiconductor
S5J
EIC SEMICONDUCTOR INC.

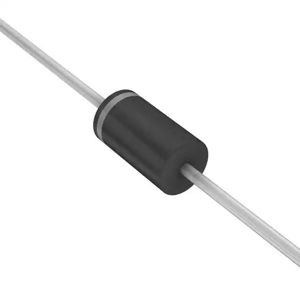

MR854T/R
