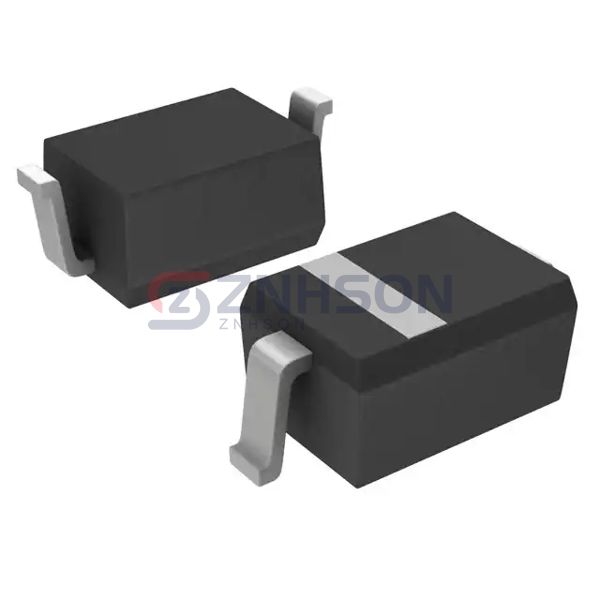

NSR1020MW2T3G
onsemi
onsemi
DIODE SCHOTTKY 20V 1A SOD323
$0.40
Available to order
Reference Price (USD)
1+
$0.40000
500+
$0.396
1000+
$0.392
1500+
$0.388
2000+
$0.384
2500+
$0.38
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with onsemi's NSR1020MW2T3G Single Rectifier Diodes, engineered for precision and durability. Perfect for rectification circuits, these diodes offer fast switching, high efficiency, and minimal power loss. Applications span across automotive systems, renewable energy solutions, and telecommunications. Key features include high temperature tolerance, low leakage current, and superior surge protection. Trust onsemi for components that meet the highest industry standards. Ready to order? Submit your inquiry now!
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 540 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 40 µA @ 15 V
- Capacitance @ Vr, F: 29pF @ 5V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: SC-76, SOD-323
- Supplier Device Package: SOD-323
- Operating Temperature - Junction: 125°C (Max)
