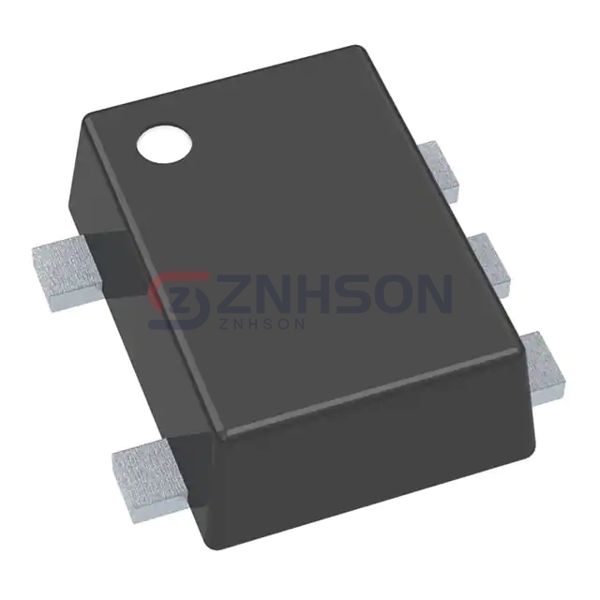

NSTB1002DXV5T1G
onsemi
onsemi
TRANS PREBIAS 1NPN 1PNP SOT553
$0.10
Available to order
Reference Price (USD)
4,000+
$0.12758
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
onsemi's NSTB1002DXV5T1G represents the next generation of Pre-Biased Bipolar Transistor Arrays, combining efficiency with compact design. These surface-mount compatible components feature integrated bias networks that reduce part count while improving system reliability. Ideal applications encompass power management, sensor interfaces, and digital circuit amplification in medical equipment, robotics, and smart home systems. Notable advantages include consistent hFE matching, reduced board space requirements, and simplified inventory management. As a leading supplier of discrete semiconductors, onsemi guarantees quality and performance. Get competitive quotes and lead times inquire about NSTB1002DXV5T1G now!
Specifications
- Product Status: Active
- Transistor Type: 1 NPN Pre-Biased, 1 PNP
- Current - Collector (Ic) (Max): 100mA, 200mA
- Voltage - Collector Emitter Breakdown (Max): 50V, 40V
- Resistor - Base (R1): 47kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V / 100 @ 1mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA / 400mV @ 5mA, 50mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 250MHz
- Power - Max: 500mW
- Mounting Type: Surface Mount
- Package / Case: SOT-553
- Supplier Device Package: SOT-553
