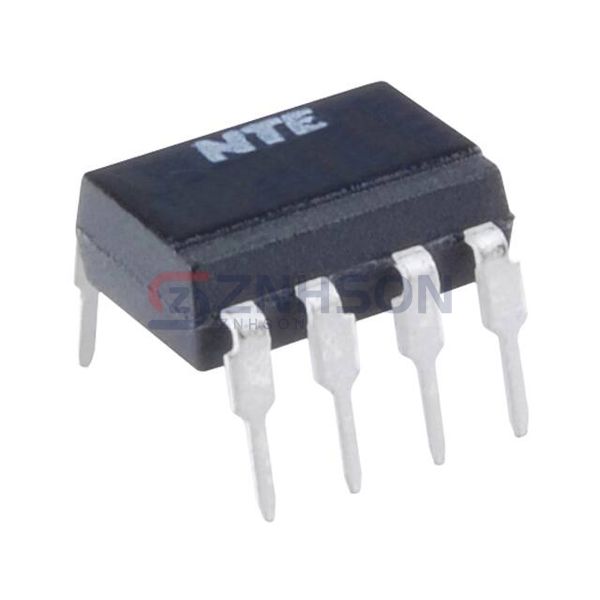

NTE3094
NTE Electronics, Inc
NTE Electronics, Inc
OPTOCOUPLER/DUAL TTL OUT
$17.43
Available to order
Reference Price (USD)
1+
$17.43000
500+
$17.2557
1000+
$17.0814
1500+
$16.9071
2000+
$16.7328
2500+
$16.5585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic designs with NTE Electronics, Inc NTE3094 Optoisolators - Logic Output. These isolators deliver high-speed, reliable signal isolation with low power consumption and excellent thermal stability, ideal for applications in HVAC, lighting controls, and security systems. Trust NTE Electronics, Inc for innovative solutions. Send us your requirements today!
Specifications
- Product Status: Active
- Number of Channels: 2
- Inputs - Side 1/Side 2: 2/0
- Voltage - Isolation: 3000VDC
- Common Mode Transient Immunity (Min): 500V/µs (Typ)
- Input Type: DC
- Output Type: Open Collector
- Current - Output / Channel: 16 mA
- Data Rate: 10Mbps
- Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
- Rise / Fall Time (Typ): 25ns, 35ns
- Voltage - Forward (Vf) (Typ): 1.5V
- Current - DC Forward (If) (Max): 15mA
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Package / Case: 8-DIP (0.300", 7.62mm)
- Supplier Device Package: 8-DIP
