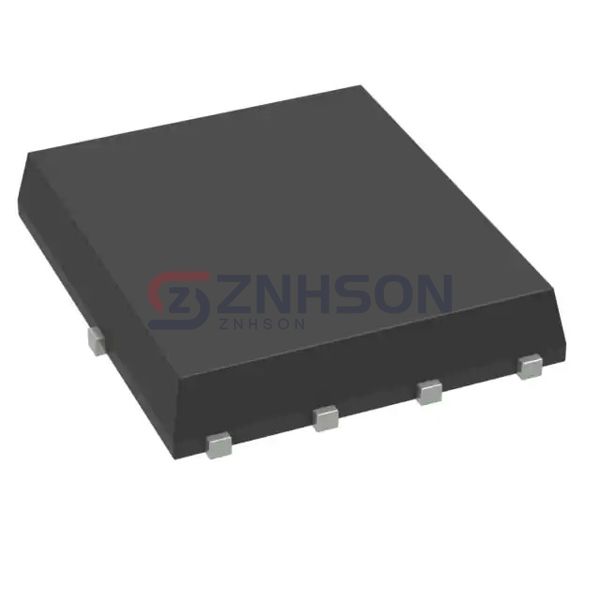

NTMFS022N15MC
onsemi
onsemi
POWER MOSFET, 150V SINGLE N CHAN
$2.63
Available to order
Reference Price (USD)
1+
$2.63000
500+
$2.6037
1000+
$2.5774
1500+
$2.5511
2000+
$2.5248
2500+
$2.4985
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover NTMFS022N15MC, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 150 V
- Current - Continuous Drain (Id) @ 25°C: 7.3A (Ta), 41.9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 8V, 10V
- Rds On (Max) @ Id, Vgs: 22mOhm @ 18A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 17 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1315 pF @ 75 V
- FET Feature: -
- Power Dissipation (Max): 2.5W (Ta), 80.6W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (5x6)
- Package / Case: 8-PowerTDFN
Related Products
Toshiba Semiconductor and Storage
SSM3J112TU,LF
Infineon Technologies
IPP320N20N3GXKSA1
IXYS
IXTP24N65X2
onsemi
MTB16N25ET4
Diotec Semiconductor
MMFTN3018W
Diodes Incorporated
ZXMN2F30FHTA
Infineon Technologies
AUIRF7739L2TR
onsemi
NTD5C434NT4G
Vishay Siliconix

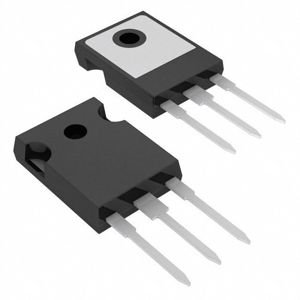

IRFPF40PBF
