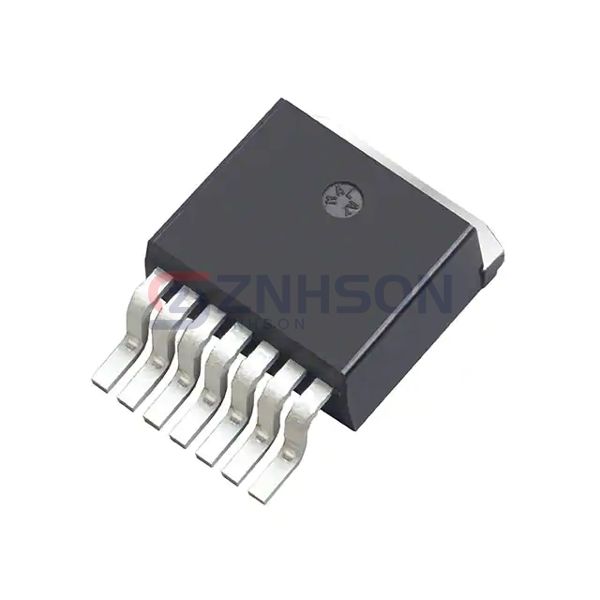

NVBG160N120SC1
onsemi
onsemi
SICFET N-CH 1200V 19.5A D2PAK
$11.36
Available to order
Reference Price (USD)
1+
$11.36000
500+
$11.2464
1000+
$11.1328
1500+
$11.0192
2000+
$10.9056
2500+
$10.792
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover NVBG160N120SC1, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 19.5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 224mOhm @ 12A, 20V
- Vgs(th) (Max) @ Id: 4.3V @ 2.5mA
- Gate Charge (Qg) (Max) @ Vgs: 33.8 nC @ 20 V
- Vgs (Max): +25V, -15V
- Input Capacitance (Ciss) (Max) @ Vds: 678 pF @ 800 V
- FET Feature: -
- Power Dissipation (Max): 136W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK-7
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
