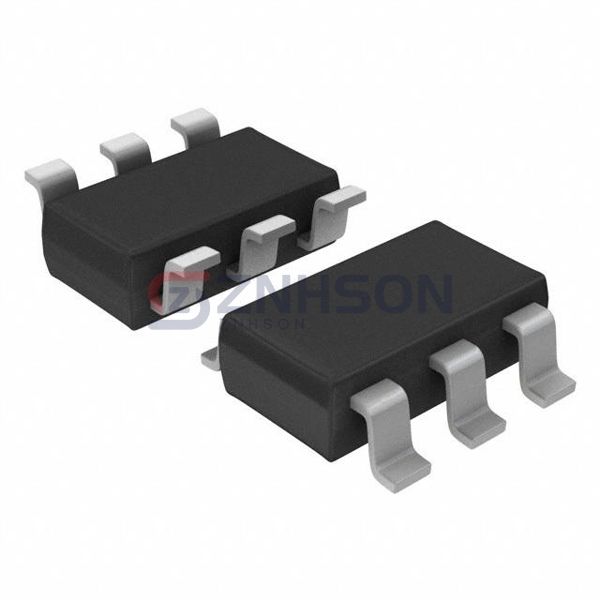

NVGS5120PT1G
onsemi
onsemi
MOSFET P-CH 60V 1.8A 6TSOP
$0.92
Available to order
Reference Price (USD)
3,000+
$0.38962
6,000+
$0.37014
15,000+
$0.35622
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover NVGS5120PT1G, a versatile Transistors - FETs, MOSFETs - Single solution from onsemi, a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 1.8A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 111mOhm @ 2.9A, 10V
- Vgs(th) (Max) @ Id: 3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 18.1 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 942 pF @ 30 V
- FET Feature: -
- Power Dissipation (Max): 600mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP
- Package / Case: SOT-23-6 Thin, TSOT-23-6
