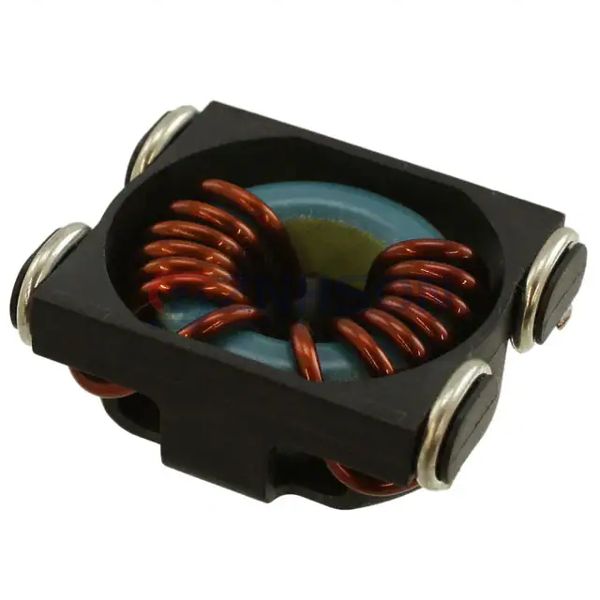

P0596NL
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 8UH SMD
$5.89
Available to order
Reference Price (USD)
1+
$5.89000
500+
$5.8311
1000+
$5.7722
1500+
$5.7133
2000+
$5.6544
2500+
$5.5955
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The P0596NL Pulse Electronics Power Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 8 µH
- Inductance - Connected In Series: 32 µH
- Tolerance: ±15%
- Current Rating - Parallel: 24 A
- Current Rating - Series: 12 A
- Current Saturation - Parallel: -
- Current Saturation - Series: -
- DC Resistance (DCR) - Parallel: 3.5mOhm Max
- DC Resistance (DCR) - Series: 13.8mOhm Max
- Shielding: Unshielded
- Ratings: -
- Operating Temperature: -40°C ~ 130°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 1.220" L x 1.000" W (30.99mm x 25.40mm)
- Height: 0.500" (12.70mm)
