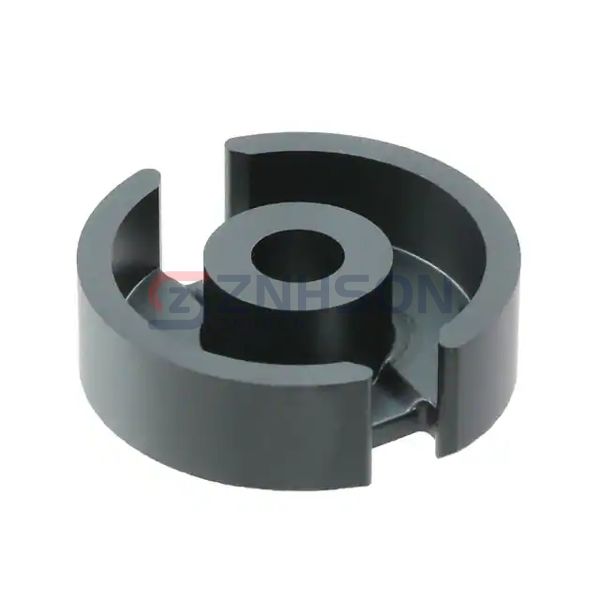

P26/16-3F3
Ferroxcube
Ferroxcube
CORES 2PC SET
$5.59
Available to order
Reference Price (USD)
1+
$3.19000
10+
$2.73400
25+
$2.05080
50+
$1.99380
100+
$1.76600
250+
$1.65204
500+
$1.53810
1,000+
$1.42418
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with Ferroxcube P26/16-3F3 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: P (Pot Core)
- Supplier Device Package: P 26 x 16
- Material: 3F3
- Diameter: 1.004" (25.50mm)
- Inductance Factor (Al): 4.6 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): 1470
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.4
- Effective Length (le) mm: 37.6
- Effective Area (Ae) mm²: 93.9
- Minimum Core Cross Section (Amin) mm²: 77.4
- Effective Magnetic Volume (Ve) mm³: 3530
- Finish: Uncoated
- Height: 0.634" (16.10mm)
- Length: -
- Width: -
