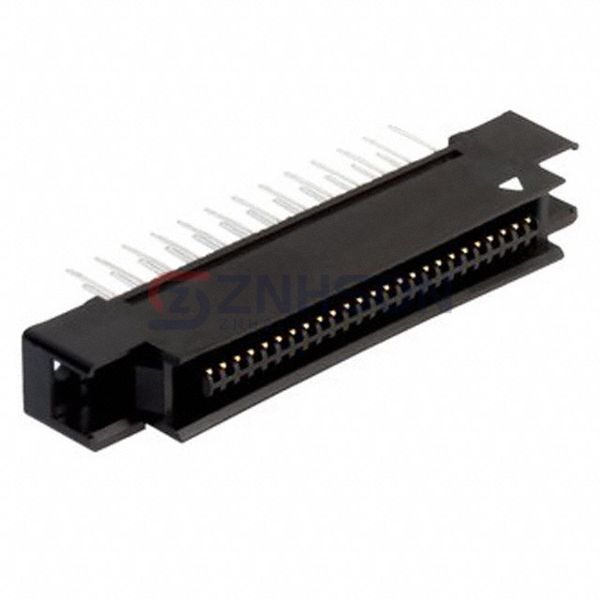

P50E-052P1-SR1-EA
3M
3M
CONN HEADER R/A 52POS 1.27MM
$7.62
Available to order
Reference Price (USD)
200+
$6.09520
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The P50E-052P1-SR1-EA 3M Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Center Strip Contact
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 52
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.276" (7.00mm)
- Contact Shape: -
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.5A
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-140-08-S-D-RA
Samtec Inc.
MTLW-102-07-G-S-225
Samtec Inc.
FTS-125-01-F-D
Molex
0015917161
Preci-Dip
850-10-048-30-135101
Preci-Dip
350-10-138-00-206101
Samtec Inc.

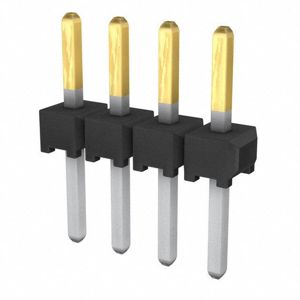

TMM-104-06-S-S
Samtec Inc.

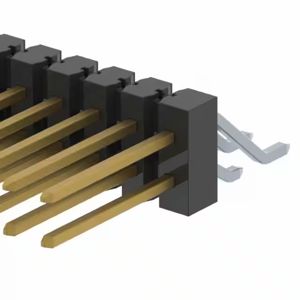

TSM-112-03-S-DH
