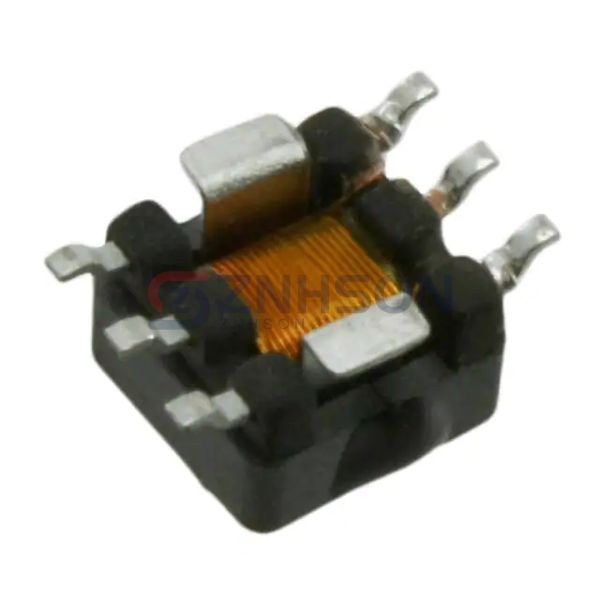

P8205NLT
Pulse Electronics Power
Pulse Electronics Power
CURR SENSE XFMR 1:50 SMD
$3.01
Available to order
Reference Price (USD)
900+
$1.62436
1,800+
$1.43780
6,300+
$1.31950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electrical systems with Pulse Electronics Power P8205NLT Current Sense Transformers, engineered for optimal performance and durability. Featuring low phase shift, high linearity, and robust construction, these transformers are perfect for use in inverters, UPS systems, and renewable energy applications. Their versatility ensures seamless integration into your projects. Interested in learning more? Submit an inquiry now, and our team will provide you with the best solutions tailored to your needs.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): -
- Inductance: 500 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:50
- Current Ratio: -
- DC Resistance (DCR): 6mOhm Primary, 1.5Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max): 0.217" (5.50mm)
- Termination Style: Gull Wing
