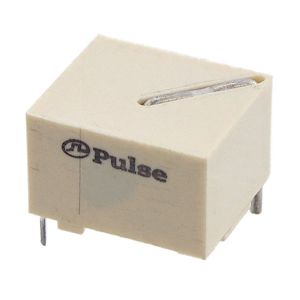

PA1005.040QNLT
Pulse Electronics Power
Pulse Electronics Power
XFMR CURR SENSE 1:40 AECQ SMD
$2.16
Available to order
Reference Price (USD)
2,700+
$0.99540
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality Pulse Electronics Power PA1005.040QNLT Current Sense Transformers, designed for precise current measurement in various applications. These transformers feature excellent accuracy, compact design, and reliable performance, making them ideal for power monitoring, industrial automation, and energy management systems. Whether you need current sensing for motor control or circuit protection, our Current Sense Transformers deliver consistent results. Contact us today for a quote and let our experts assist you with your specific requirements!
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): 20 A
- Inductance: 320 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:40
- Current Ratio: -
- DC Resistance (DCR): 0.75mOhm Primary, 1.14Ohm Secondary Max
- Ratings: AEC-Q200
- Mounting Type: Surface Mount
- Size / Dimension: 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max): 0.217" (5.50mm)
- Termination Style: Gull Wing
