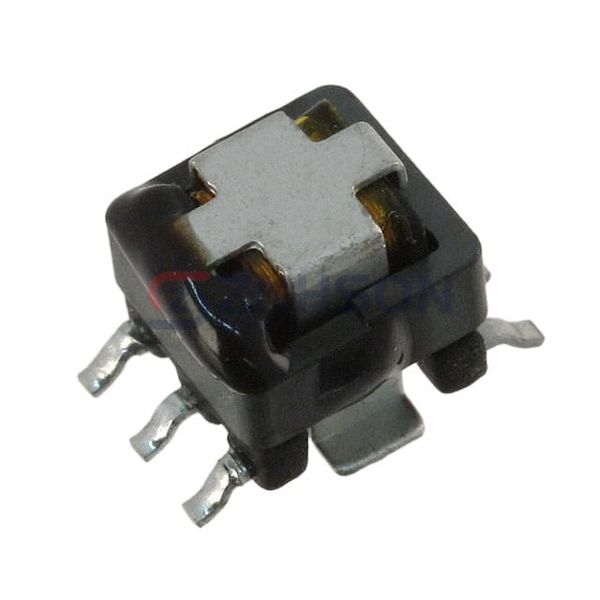

PA1005.050NLT
Pulse Electronics Power
Pulse Electronics Power
CURR SENSE XFMR 1:50 20A SMD
$2.39
Available to order
Reference Price (USD)
900+
$1.23166
1,800+
$1.09020
6,300+
$1.00050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve precise current detection with Pulse Electronics Power PA1005.050NLT Current Sense Transformers, built to meet the highest industry standards. With features like high isolation voltage, compact size, and easy installation, these transformers are perfect for use in data centers, electric vehicles, and consumer electronics. Their reliability ensures smooth operation in critical applications. Contact our sales team today to request a sample or place an order.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): 20 A
- Inductance: 500 µH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:50
- Current Ratio: -
- DC Resistance (DCR): 0.75mOhm Primary, 1.5Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max): 0.217" (5.50mm)
- Termination Style: Gull Wing
