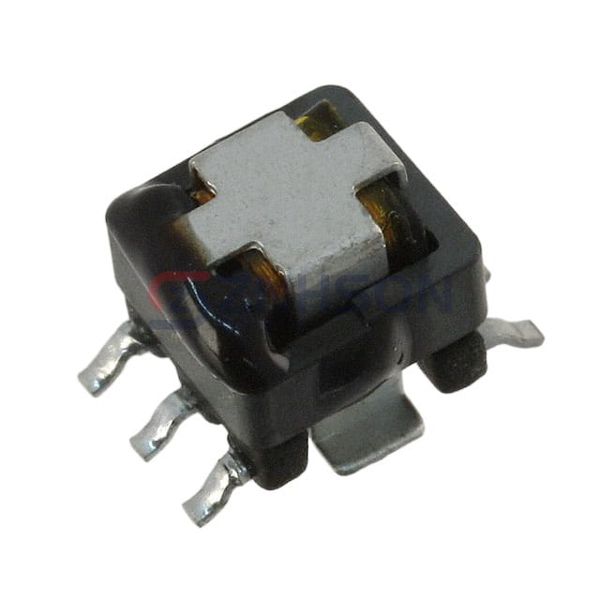

PA1005.100NLT
Pulse Electronics Power
Pulse Electronics Power
CURR SENSE XFMR 1:100 20A SMD
$2.39
Available to order
Reference Price (USD)
900+
$1.23166
1,800+
$1.09020
6,300+
$1.00050
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your current sensing capabilities with Pulse Electronics Power PA1005.100NLT Current Sense Transformers, offering unmatched precision and reliability. These transformers are designed with high saturation resistance and minimal insertion loss, suitable for automotive, telecommunications, and medical equipment. Their advanced technology ensures accurate measurements in demanding environments. Ready to find the perfect fit for your application? Get in touch with us today for expert advice and competitive pricing.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 1MHz
- Type: Invasive
- Current Rating (Amps): 20 A
- Inductance: 2 mH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 1:100
- Current Ratio: -
- DC Resistance (DCR): 0.75mOhm Primary, 5.5Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.284" L x 0.330" W (7.21mm x 8.38mm)
- Height - Seated (Max): 0.217" (5.50mm)
- Termination Style: Gull Wing
