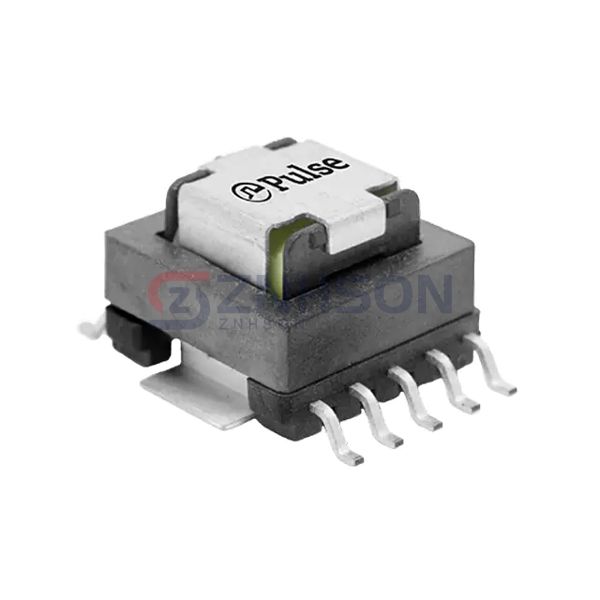

PB0026NL
Pulse Electronics Power
Pulse Electronics Power
CURR SENSE XFMR 100:1 35A SMD
$3.60
Available to order
Reference Price (USD)
1+
$3.60000
500+
$3.564
1000+
$3.528
1500+
$3.492
2000+
$3.456
2500+
$3.42
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your project's potential with Pulse Electronics Power PB0026NL Current Sense Transformers, featuring cutting-edge technology and superior performance. With attributes like high bandwidth, low hysteresis, and excellent linearity, these transformers are ideal for test and measurement equipment, industrial controls, and telecommunications. Their reliability ensures consistent operation. Contact us today to discuss your requirements and discover how we can support your success.
Specifications
- Product Status: Active
- Frequency Range: 50kHz ~ 500kHz
- Type: Invasive
- Current Rating (Amps): 35 A
- Inductance: 5.6 mH
- ET (Volt-Time): -
- Turns Ratio - Primary:Secondary: 100:1
- Current Ratio: -
- DC Resistance (DCR): 0.42mOhm Primary, 1.4Ohm Secondary
- Ratings: -
- Mounting Type: Surface Mount
- Size / Dimension: 0.591" L x 0.784" W (15.00mm x 19.91mm)
- Height - Seated (Max): 0.394" (10.00mm)
- Termination Style: Gull Wing
