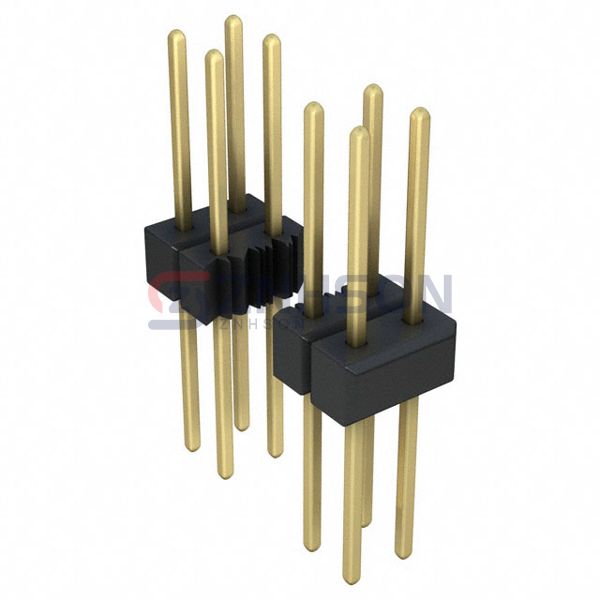

PBC06DFCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 12POS 2.54MM
$1.38
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.21400
25+
$1.14240
50+
$1.09480
100+
$1.04720
250+
$0.95200
500+
$0.85680
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC06DFCN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.738" (18.75mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
350-80-160-00-006101
Samtec Inc.
TSM-108-04-T-DV-P-TR
Preci-Dip
450-10-260-00-018101
Sullins Connector Solutions
PBC01DACN
TE Connectivity AMP Connectors
9-146305-0-07
3M

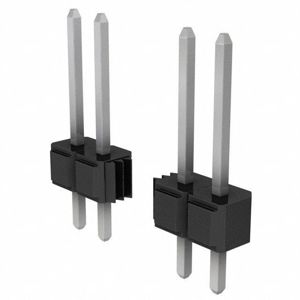

929700-01-09
Samtec Inc.

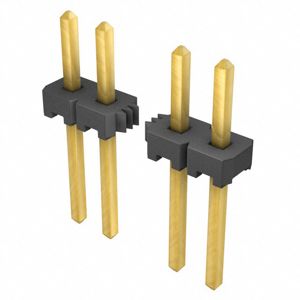

MTLW-116-07-G-S-280
Molex

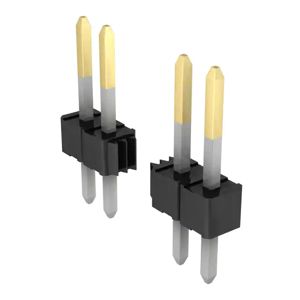

0022284256
