PBC11SBCN

Sullins Connector Solutions

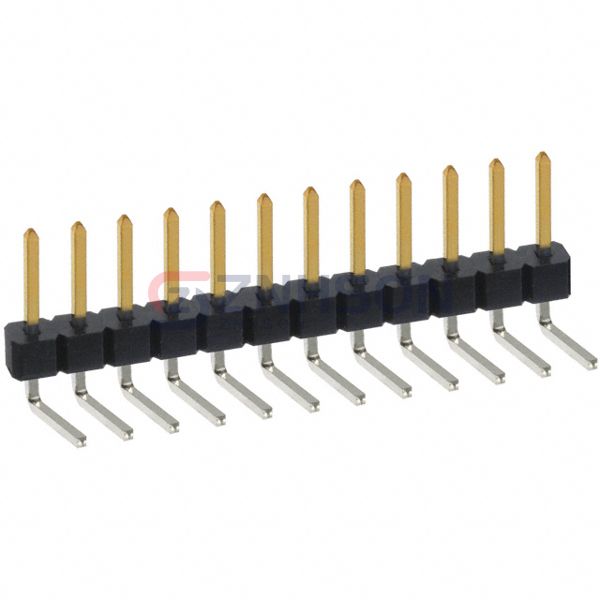

PBC11SBCN Preview
Sullins Connector Solutions
CONN HEADER R/A 11POS 2.54MM
PBC11SBCN Datasheet
$1.56
Available to order
Reference Price (USD)
1+
$1.56000
10+
$1.41900
25+
$1.33240
50+
$1.27460
100+
$1.21660
250+
$1.10072
500+
$1.01382
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 11
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.300" (7.62mm)
  • Overall Contact Length: -
  • Insulation Height: 0.140" (3.56mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -65°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -
