PBC24SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 24POS 2.54MM
$2.64
Available to order
Reference Price (USD)
1+
$2.64000
10+
$2.39100
25+
$2.24480
50+
$2.14720
100+
$2.04960
250+
$1.85440
500+
$1.70800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with PBC24SADN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-119-01-G-S
TE Connectivity AMP Connectors
1-102692-7
Samtec Inc.
ZSS-115-05-S-D-900
Samtec Inc.
TSW-141-05-S-S
Preci-Dip
800-10-036-20-004101
Mill-Max Manufacturing Corp.
800-10-011-10-002000
Samtec Inc.
TSM-104-01-L-SH-LC-P

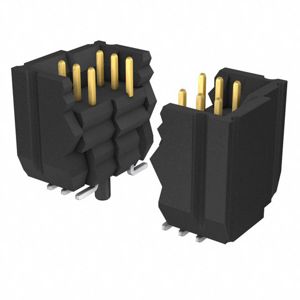

Samtec Inc.
