PBC33DFDN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 66POS 2.54MM
$6.76
Available to order
Reference Price (USD)
1+
$6.76000
10+
$6.47700
25+
$5.91360
50+
$5.63200
100+
$5.35040
250+
$4.78720
500+
$4.50560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC33DFDN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
1-1971818-3
Preci-Dip
450-80-210-01-899101
Samtec Inc.
TMM-103-03-TM-S
TE Connectivity AMP Connectors
9-103795-0-27
Samtec Inc.
TSM-108-01-S-SH-LC-P
Samtec Inc.
TMM-120-01-LM-D-SM-A-P
Oupiin
2011-1X02G00SB

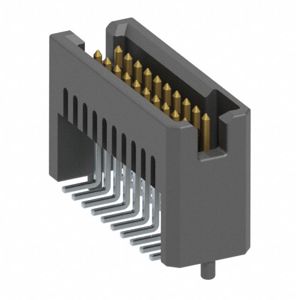

Samtec Inc.
TFM-110-22-SM-D-A-P

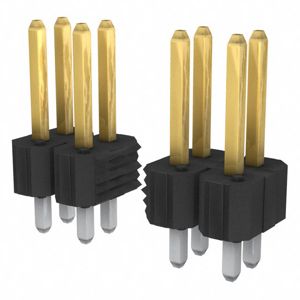

Amphenol ICC (FCI)
