PBC34SFDN
Sullins Connector Solutions
Sullins Connector Solutions

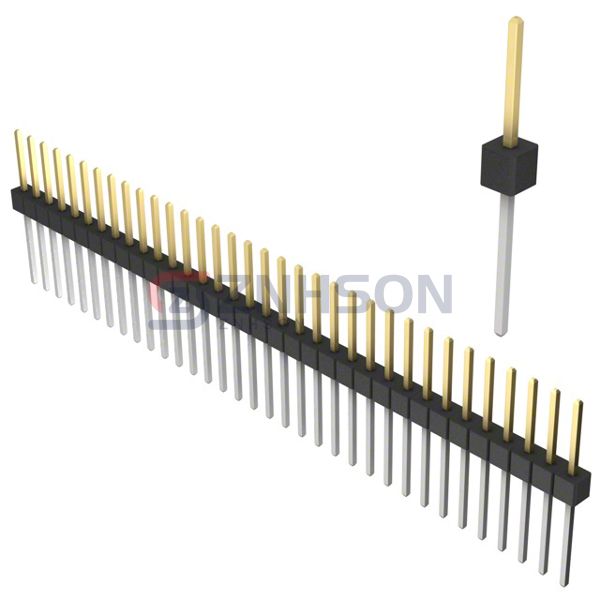

CONN HEADER VERT 34POS 2.54MM
$4.08
Available to order
Reference Price (USD)
1+
$4.08000
10+
$3.91700
25+
$3.59040
50+
$3.42720
100+
$3.26400
250+
$2.85600
500+
$2.77440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC34SFDN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.838" (21.29mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
