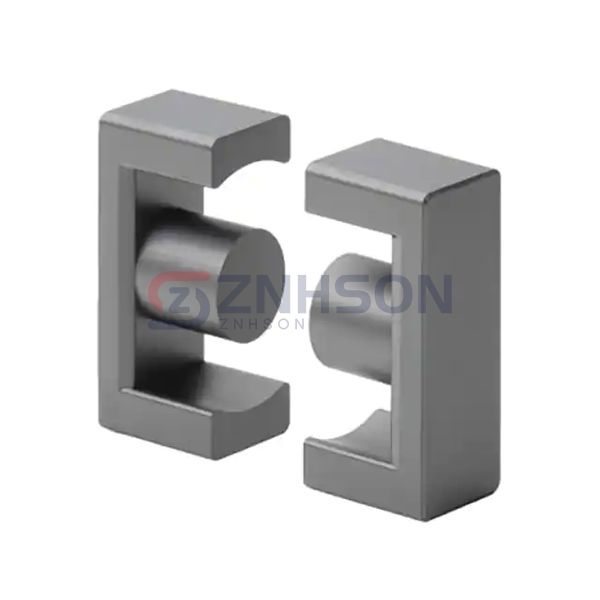

PC47EER28L-Z
TDK Corporation
TDK Corporation
FERRITE CORE EER 2.52UH 2PC SET
$2.19
Available to order
Reference Price (USD)
1+
$2.09000
10+
$1.80000
25+
$1.36800
50+
$1.29600
150+
$1.15200
300+
$1.08000
600+
$1.00800
1,050+
$0.92520
5,100+
$0.90000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC47EER28L-Z Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: EER 28
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 2.52 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.93
- Effective Length (le) mm: 75.5
- Effective Area (Ae) mm²: 81.4
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 6150
- Finish: Uncoated
- Height: 0.665" (16.90mm)
- Length: 1.124" (28.55mm)
- Width: 0.449" (11.40mm)
