PC47EER49-Z
TDK Corporation
TDK Corporation

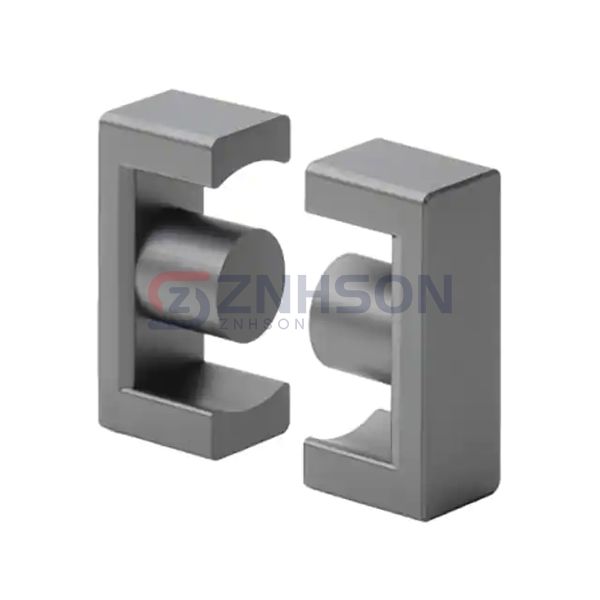

FERRITE CORE EER 6.25UH 2PC SET
$9.02
Available to order
Reference Price (USD)
1+
$9.02000
10+
$7.68200
48+
$5.84500
96+
$5.67802
144+
$5.01000
288+
$4.67601
528+
$4.34201
1,008+
$4.17500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with TDK Corporation PC47EER49-Z Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: E
- Supplier Device Package: EER 49
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 6.25 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.4
- Effective Length (le) mm: 91.3
- Effective Area (Ae) mm²: 231
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 21100
- Finish: Uncoated
- Height: 0.748" (19.00mm)
- Length: 1.929" (49.00mm)
- Width: 0.677" (17.20mm)
