PC47EPC25-Z
TDK Corporation
TDK Corporation

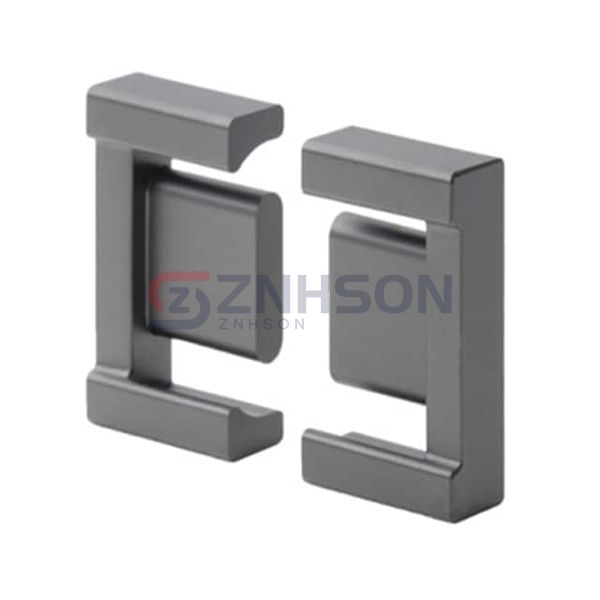

FERRITE CORE EPC 1.56UH 2PC SET
$1.44
Available to order
Reference Price (USD)
1+
$2.49000
10+
$2.15000
25+
$1.63400
50+
$1.54800
200+
$1.37600
400+
$1.29000
600+
$1.20400
1,000+
$1.10510
5,000+
$1.07500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve optimal power management with TDK Corporation PC47EPC25-Z Ferrite Cores, crafted for high-performance energy conversion and filtering. These cores are essential in designing efficient power supplies, RF devices, and noise suppression circuits. With excellent thermal stability and low core loss, they are suitable for harsh operating conditions. Trusted by engineers worldwide for critical applications. Reach out to our team for expert advice and customized solutions!
Specifications
- Product Status: Active
- Core Type: EPC
- Supplier Device Package: EPC 25
- Material: PC47
- Diameter: -
- Inductance Factor (Al): 1.56 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 1.4
- Effective Length (le) mm: 56.3
- Effective Area (Ae) mm²: 40.4
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 2280
- Finish: Uncoated
- Height: 0.492" (12.50mm)
- Length: 0.988" (25.10mm)
- Width: 0.315" (8.00mm)
