PC95EIR14/4.5/9-Z
TDK Corporation
TDK Corporation

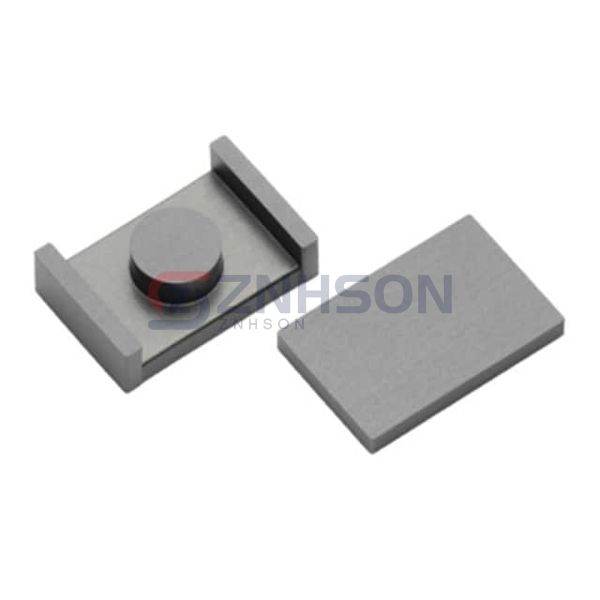

FERRITE CORE EIR 2.8UH 1SET
$1.71
Available to order
Reference Price (USD)
1+
$1.62000
10+
$1.40000
25+
$1.06400
50+
$1.00800
100+
$0.89600
400+
$0.84000
800+
$0.78400
1,200+
$0.71960
5,200+
$0.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Invest in reliability with TDK Corporation PC95EIR14/4.5/9-Z Ferrite Cores, tailored for high-efficiency power transfer and noise reduction. These cores are ideal for use in resonant circuits, pulse transformers, and EMI filters. Their high saturation flux density and minimal eddy current loss make them a top choice for power electronics. From industrial machinery to consumer gadgets, our Ferrite Cores ensure peak performance. Contact us for a detailed quote and technical support!
Specifications
- Product Status: Active
- Core Type: HER, PLT
- Supplier Device Package: EIR 14 x 4.5 x 9
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 2.8 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.68
- Effective Length (le) mm: 22.7
- Effective Area (Ae) mm²: 15.4
- Minimum Core Cross Section (Amin) mm²: 21.2
- Effective Magnetic Volume (Ve) mm³: 349
- Finish: Uncoated
- Height: 0.177" (4.50mm)
- Length: 0.545" (13.85mm)
- Width: 0.354" (9.00mm)
