PC95EIR18/5/12-Z
TDK Corporation
TDK Corporation

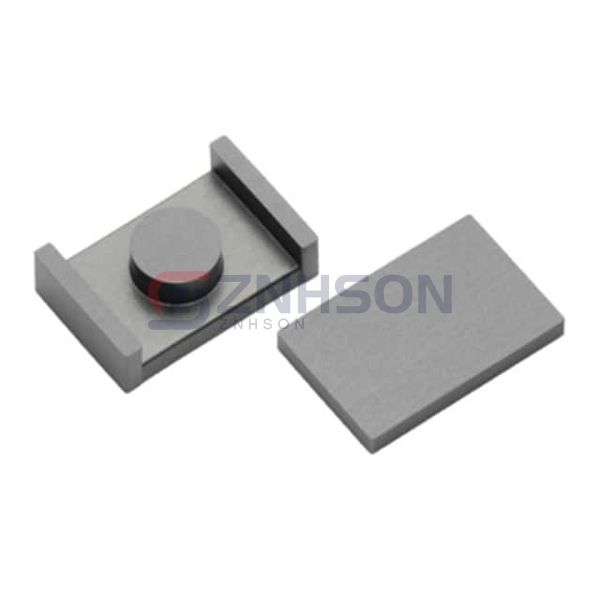

FERRITE CORE EIR 3.69UH 1SET
$1.65
Available to order
Reference Price (USD)
1+
$1.65000
10+
$1.42500
25+
$1.08320
50+
$1.02600
100+
$0.91200
400+
$0.85500
800+
$0.79800
1,200+
$0.73245
5,200+
$0.71250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's performance with TDK Corporation PC95EIR18/5/12-Z Ferrite Cores, the go-to solution for effective electromagnetic interference suppression. These cores are critical in designing efficient power converters, inductors, and high-frequency transformers. With excellent temperature stability and low hysteresis loss, they are perfect for aerospace, defense, and telecommunications applications. Get in touch with us to discuss how our Ferrite Cores can meet your project needs!
Specifications
- Product Status: Active
- Core Type: HER, PLT
- Supplier Device Package: EI 18 x 5 x 12
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 3.69 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.6
- Effective Length (le) mm: 32.8
- Effective Area (Ae) mm²: 19.7
- Minimum Core Cross Section (Amin) mm²: 28.3
- Effective Magnetic Volume (Ve) mm³: 645
- Finish: Uncoated
- Height: 0.197" (5.00mm)
- Length: 0.715" (18.15mm)
- Width: 0.472" (12.00mm)
