PC95EIR22/5.5/15-Z
TDK Corporation
TDK Corporation
FERRITE CORE EIR 4.15UH 1SET
$2.58
Available to order
Reference Price (USD)
1+
$2.58000
10+
$2.22500
25+
$1.69120
50+
$1.60200
100+
$1.42400
256+
$1.33500
512+
$1.24600
1,024+
$1.14365
5,120+
$1.11250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with TDK Corporation PC95EIR22/5.5/15-Z Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: HER, PLT
- Supplier Device Package: EIR 22 x 5.5 x 15
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 4.15 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.51
- Effective Length (le) mm: 46.1
- Effective Area (Ae) mm²: 23.2
- Minimum Core Cross Section (Amin) mm²: 36.3
- Effective Magnetic Volume (Ve) mm³: 1070
- Finish: Uncoated
- Height: 0.216" (5.50mm)
- Length: 0.870" (22.10mm)
- Width: 0.600" (15.25mm)
Related Products
EPCOS - TDK Electronics
B66319G0100X187
Ferroxcube
TX55/32/18-3E27
EPCOS - TDK Electronics
B66421G0000X187
EPCOS - TDK Electronics
B65887E0400A041
EPCOS - TDK Electronics

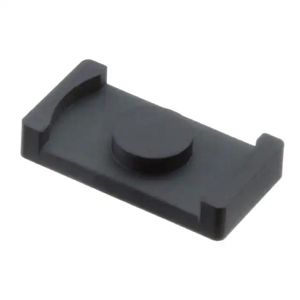

B66480G0000X192
