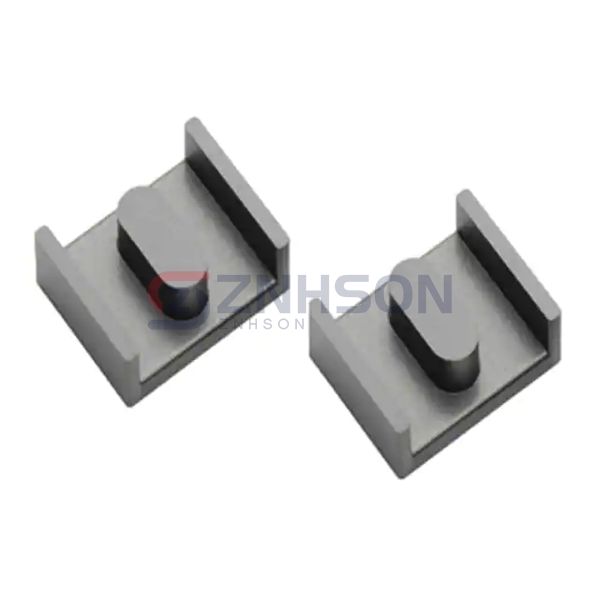

PC95EL15.5X5.8-Z
TDK Corporation
TDK Corporation
FERRITE CORE EL 3.68UH 2PC SET
$1.61
Available to order
Reference Price (USD)
1+
$1.54000
10+
$1.32500
25+
$1.00720
50+
$0.95400
100+
$0.84800
450+
$0.79500
900+
$0.74200
1,350+
$0.68105
5,400+
$0.66250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Elevate your circuit designs with TDK Corporation PC95EL15.5X5.8-Z Ferrite Cores, renowned for their high permeability and minimal energy dissipation. These cores are pivotal in creating efficient transformers, inductors, and chokes for various industries. Their robust performance in high-frequency applications makes them ideal for telecommunications and power electronics. Don't miss out on top-tier quality contact us now for pricing and availability details!
Specifications
- Product Status: Active
- Core Type: EL
- Supplier Device Package: EI 15.5 x 5.8
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 3.68 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.6
- Effective Length (le) mm: 32.9
- Effective Area (Ae) mm²: 19.6
- Minimum Core Cross Section (Amin) mm²: 31.9
- Effective Magnetic Volume (Ve) mm³: 646
- Finish: Uncoated
- Height: 0.115" (2.92mm)
- Length: 0.610" (15.50mm)
- Width: 0.488" (12.40mm)
