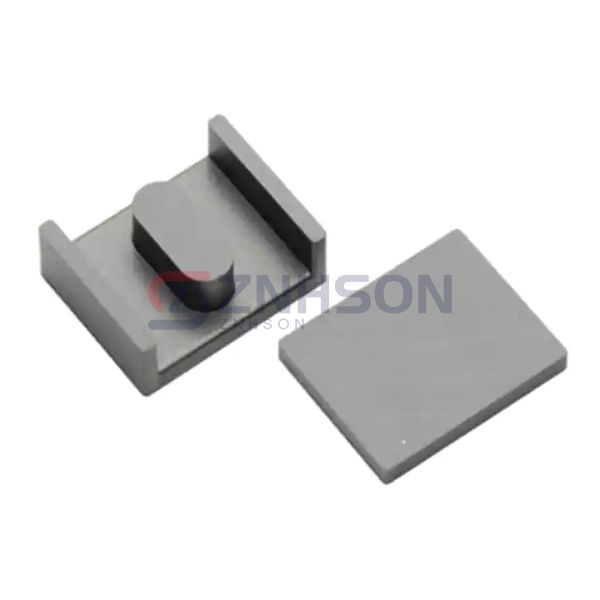

PC95ELT20X7.7-Z
TDK Corporation
TDK Corporation
FERRITE CORE ELT 5.63UH 1SET
$2.23
Available to order
Reference Price (USD)
1+
$2.23000
10+
$1.92500
25+
$1.46320
50+
$1.38600
100+
$1.23200
400+
$1.15500
800+
$1.07800
1,200+
$0.98945
5,200+
$0.96250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit efficiency with TDK Corporation PC95ELT20X7.7-Z Ferrite Cores, engineered for high-frequency applications and minimal energy loss. These cores are indispensable in power inductors, common-mode chokes, and broadband transformers. Their robust construction ensures durability and consistent performance. Suitable for renewable energy systems, automotive electronics, and more. Don't compromise on quality reach out to our sales team for personalized solutions and competitive pricing!
Specifications
- Product Status: Active
- Core Type: ELH, PLT
- Supplier Device Package: ELT 20 x 7.7
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 5.63 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.47
- Effective Length (le) mm: 54.6
- Effective Area (Ae) mm²: 25.6
- Minimum Core Cross Section (Amin) mm²: 52.9
- Effective Magnetic Volume (Ve) mm³: 1400
- Finish: Uncoated
- Height: 0.230" (5.84mm)
- Length: 0.787" (20.00mm)
- Width: 0.630" (16.00mm)
