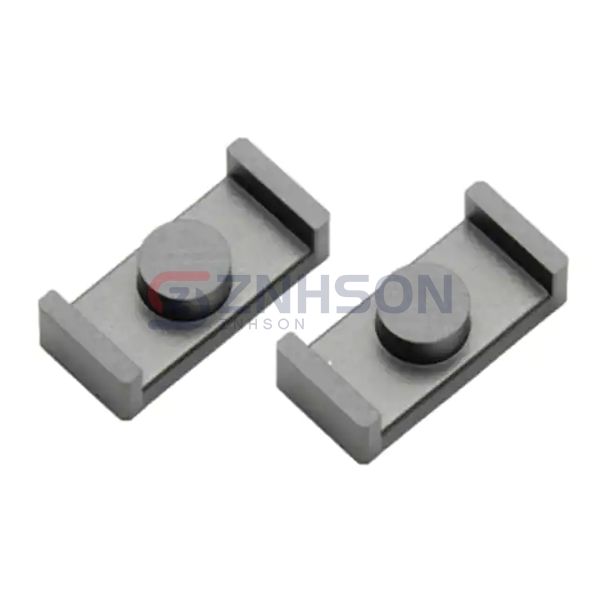

PC95ER18/5/12-Z
TDK Corporation
TDK Corporation
FERRITE CORE ER 3.5UH 2PC SET
$1.45
Available to order
Reference Price (USD)
1+
$1.38000
10+
$1.24200
25+
$0.92000
50+
$0.87400
100+
$0.78200
400+
$0.73600
800+
$0.69000
1,200+
$0.59800
5,200+
$0.57500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC95ER18/5/12-Z Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: ER
- Supplier Device Package: ER 18 x 5 x 12
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 3.5 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.6
- Effective Length (le) mm: 32.8
- Effective Area (Ae) mm²: 19.7
- Minimum Core Cross Section (Amin) mm²: 28.3
- Effective Magnetic Volume (Ve) mm³: 645
- Finish: Uncoated
- Height: 0.098" (2.50mm)
- Length: 0.715" (18.15mm)
- Width: 0.472" (12.00mm)
