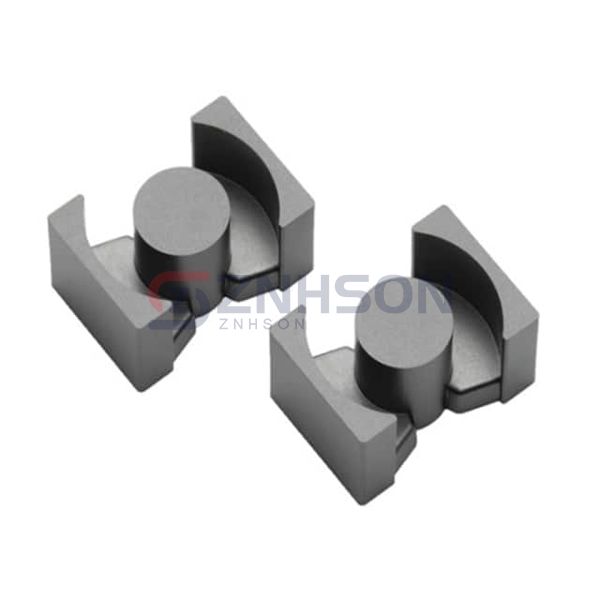

PC95PQ26/20Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 7.47UH 2PC SET
$7.99
Available to order
Reference Price (USD)
1+
$7.99000
10+
$6.80800
25+
$5.18000
50+
$5.03200
160+
$4.44000
320+
$4.14400
640+
$3.84800
1,120+
$3.70000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Streamline your power electronics with TDK Corporation PC95PQ26/20Z-12 Ferrite Cores, engineered for maximum efficiency and reliability. These cores are crucial in applications like solar inverters, motor drives, and wireless charging systems. Their excellent magnetic characteristics ensure low loss and high performance. Suitable for both commercial and industrial uses, our Ferrite Cores are a smart investment. Get in touch today to discuss your requirements and place an order!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 26 x 20
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7.47 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.39
- Effective Length (le) mm: 46.3
- Effective Area (Ae) mm²: 119
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 5490
- Finish: Uncoated
- Height: 0.793" (20.15mm)
- Length: 1.043" (26.50mm)
- Width: 0.748" (19.00mm)
