PC95PQ32/30Z-12
TDK Corporation
TDK Corporation

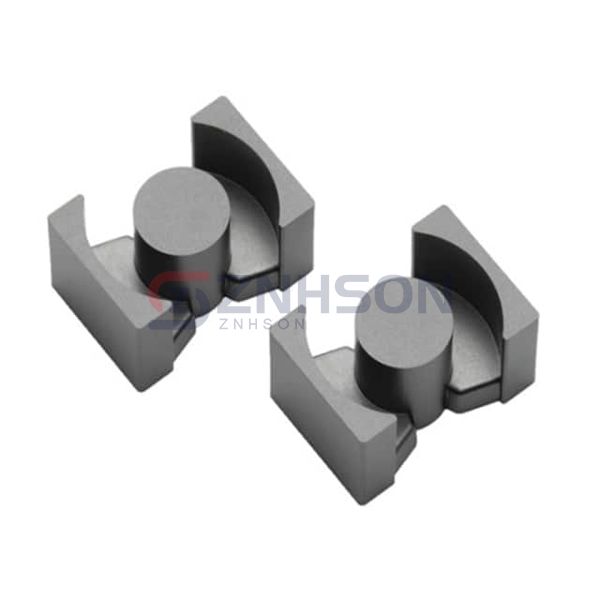

FERRITE CORE PQ 7UH 2PC SET
$11.28
Available to order
Reference Price (USD)
1+
$10.75000
10+
$9.15400
25+
$6.96520
50+
$6.76600
104+
$5.97000
312+
$5.57199
520+
$5.17400
1,040+
$4.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC95PQ32/30Z-12 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 32 x 30
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.46
- Effective Length (le) mm: 74.6
- Effective Area (Ae) mm²: 161
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 12000
- Finish: Uncoated
- Height: 1.195" (30.35mm)
- Length: 1.260" (32.00mm)
- Width: 0.866" (22.00mm)
