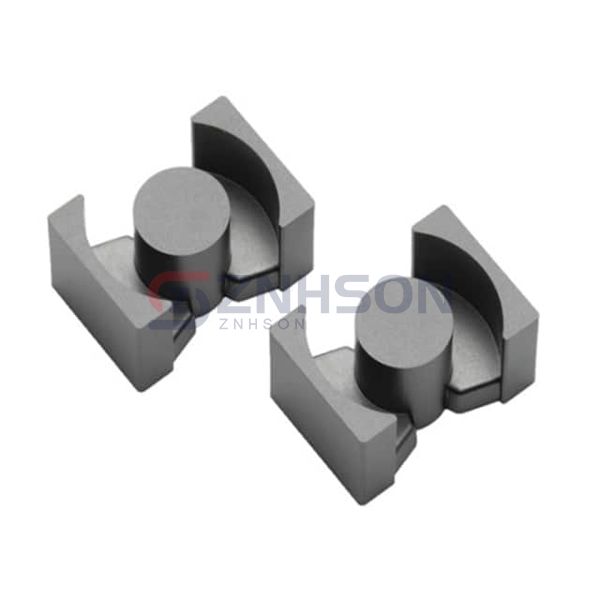

PC95PQ40/40Z-12
TDK Corporation
TDK Corporation
FERRITE CORE PQ 6.4UH 2PC SET
$14.10
Available to order
Reference Price (USD)
1+
$13.43000
10+
$12.08300
25+
$9.12920
56+
$8.86054
112+
$7.78652
280+
$7.14211
504+
$6.81990
1,008+
$6.71250
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with premium TDK Corporation PC95PQ40/40Z-12 Ferrite Cores, designed for superior magnetic performance and thermal stability. Perfect for applications in switch-mode power supplies, RF transformers, and noise filters. These cores offer low core loss and high permeability, making them a reliable choice for demanding environments. Whether for industrial, medical, or consumer electronics, our Ferrite Cores deliver unmatched quality. Request a sample or inquire about bulk pricing now!
Specifications
- Product Status: Active
- Core Type: PQ
- Supplier Device Package: PQ 40 x 40
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 6.4 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.51
- Effective Length (le) mm: 102
- Effective Area (Ae) mm²: 201
- Minimum Core Cross Section (Amin) mm²: -
- Effective Magnetic Volume (Ve) mm³: 20500
- Finish: Uncoated
- Height: 1.565" (39.75mm)
- Length: 1.594" (40.50mm)
- Width: 1.102" (28.00mm)
