PC95PQI20/9Z-12
TDK Corporation
TDK Corporation

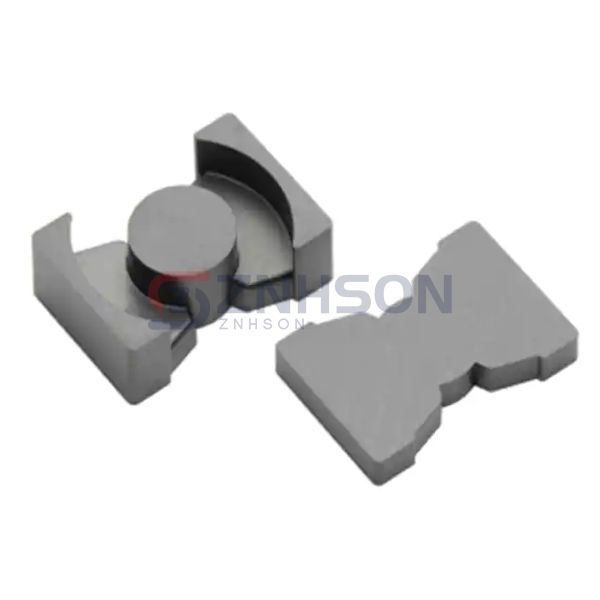

FERRITE CORE PQI 7.07UH 1SET
$2.77
Available to order
Reference Price (USD)
1+
$2.64000
10+
$2.27500
25+
$1.72920
50+
$1.63800
100+
$1.45600
256+
$1.36500
512+
$1.27400
1,024+
$1.16935
5,120+
$1.13750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic systems with TDK Corporation PC95PQI20/9Z-12 Ferrite Cores, designed to deliver superior magnetic performance and durability. These cores are widely used in power conversion, signal processing, and noise filtering applications. Their high-frequency capabilities and thermal resilience make them ideal for advanced electronics. Whether for IoT devices or automotive applications, our Ferrite Cores stand out. Request a consultation with our experts to find the best solution for your needs!
Specifications
- Product Status: Active
- Core Type: HPQ, PQD
- Supplier Device Package: PQI 20 x 9
- Material: PC95
- Diameter: -
- Inductance Factor (Al): 7.07 µH
- Tolerance: ±25%
- Gap: Ungapped
- Effective Permeability (µe): -
- Initial Permeability (µi): -
- Core Factor (ΣI/A) mm-1: 0.35
- Effective Length (le) mm: 66
- Effective Area (Ae) mm²: 22.9
- Minimum Core Cross Section (Amin) mm²: 59.3
- Effective Magnetic Volume (Ve) mm³: 1510
- Finish: Uncoated
- Height: 0.236" (6.00mm)
- Length: 0.807" (20.50mm)
- Width: 0.551" (14.00mm)
