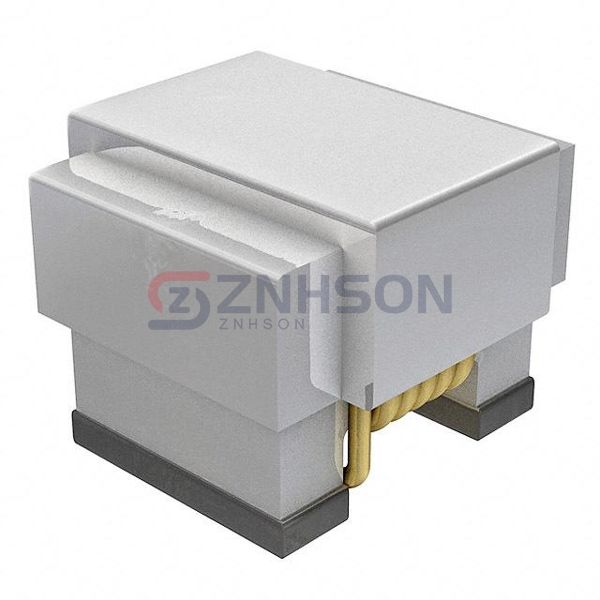

PE-0805CD560GTT
Pulse Electronics Network
Pulse Electronics Network
FIXED IND 55.5NH 500MA 340 MOHM
$0.16
Available to order
Reference Price (USD)
12,000+
$0.14580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with PE-0805CD560GTT Fixed Inductors from Pulse Electronics Network, a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. PE-0805CD560GTT ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: Drum Core, Wirewound
- Material - Core: Ceramic
- Inductance: 55.5 nH
- Tolerance: ±2%
- Current Rating (Amps): 500 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 340mOhm Max
- Q @ Freq: 60 @ 500MHz
- Frequency - Self Resonant: 1.55GHz
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Inductance Frequency - Test: 200 MHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: 0805 (2012 Metric)
- Supplier Device Package: 0805 (2012 Metric)
- Size / Dimension: 0.090" L x 0.066" W (2.29mm x 1.68mm)
- Height - Seated (Max): 0.062" (1.58mm)
