PEC07SGAN

Sullins Connector Solutions

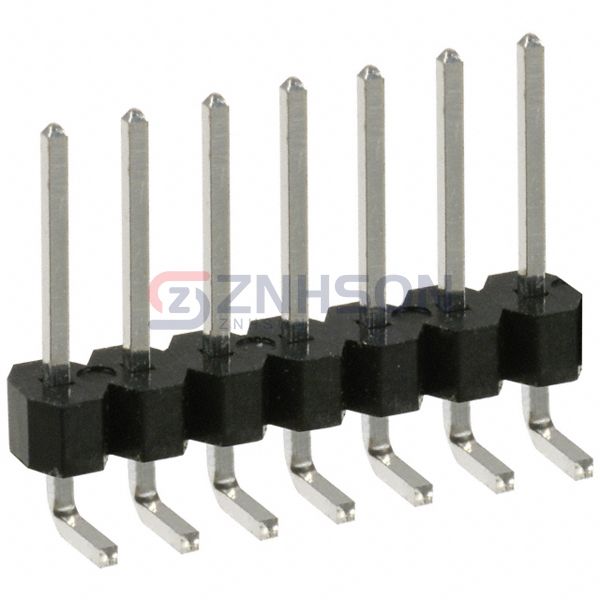

PEC07SGAN Preview
Sullins Connector Solutions
CONN HEADER R/A 7POS 2.54MM
PEC07SGAN Datasheet
$0.73
Available to order
Reference Price (USD)
1+
$0.73000
10+
$0.68600
25+
$0.61760
50+
$0.54880
100+
$0.52590
250+
$0.48020
500+
$0.45734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 7
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.318" (8.08mm)
  • Contact Length - Post: 0.100" (2.54mm)
  • Overall Contact Length: -
  • Insulation Height: 0.140" (3.56mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 100.0µin (2.54µm)
  • Contact Finish - Post: Tin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -65°C ~ 125°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -
