PEC08SAFN
Sullins Connector Solutions
Sullins Connector Solutions

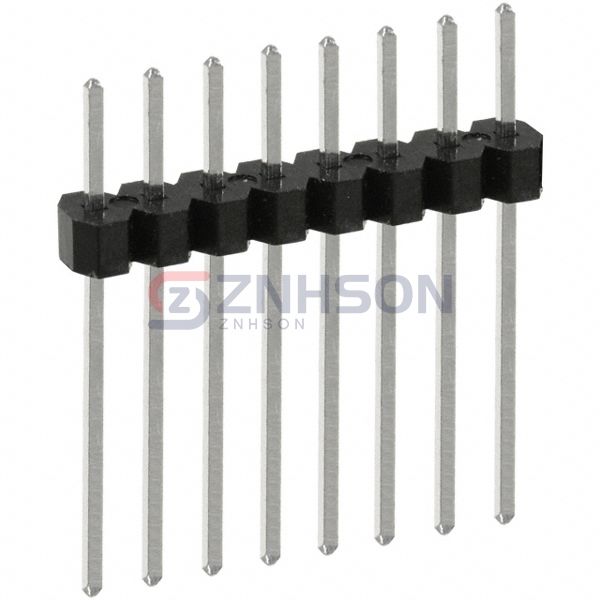

CONN HEADER VERT 8POS 2.54MM
$1.06
Available to order
Reference Price (USD)
1+
$1.06000
10+
$0.93200
25+
$0.87680
50+
$0.84020
100+
$0.80370
250+
$0.73068
500+
$0.65760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with PEC08SAFN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.620" (15.75mm)
- Overall Contact Length: 0.950" (24.13mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
