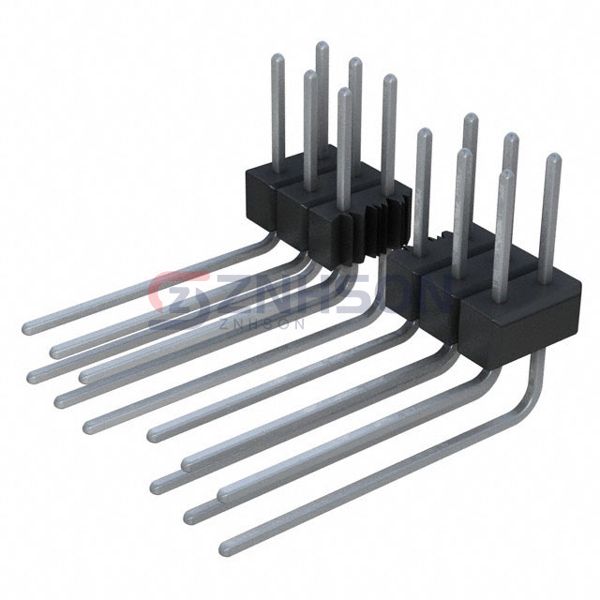

PEC09DBEN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 18POS 2.54MM
$2.65
Available to order
Reference Price (USD)
1+
$2.65000
10+
$2.40300
25+
$2.25640
50+
$2.15820
100+
$2.06010
250+
$1.86392
500+
$1.71676
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC09DBEN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Sullins Connector Solutions difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.500" (12.70mm)
- Overall Contact Length: -
- Insulation Height: 0.240" (6.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTMH-117-03-F-DV-A
Preci-Dip
350-80-135-01-899101
Preci-Dip
451-80-240-00-003101
Samtec Inc.
TSW-110-06-F-D
Samtec Inc.
HTSW-135-07-L-S
TE Connectivity AMP Connectors

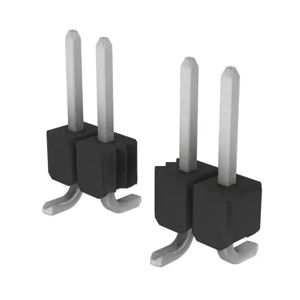

1-146133-4
Samtec Inc.
FTSH-132-04-L-DH
Samtec Inc.

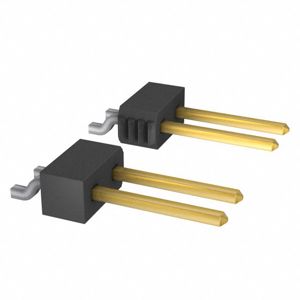

TSM-109-02-L-SH

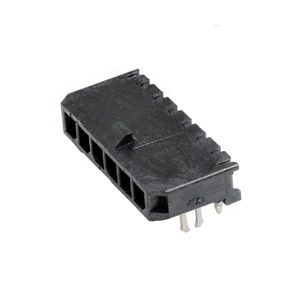

Molex
