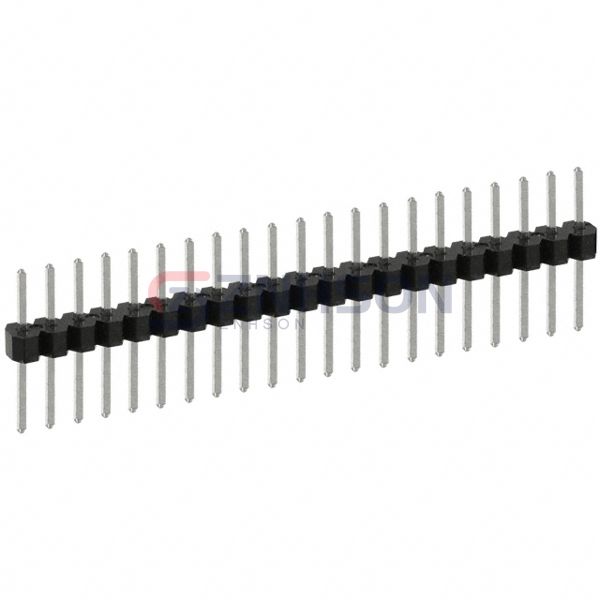

PEC21SACN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 21POS 2.54MM
$1.83
Available to order
Reference Price (USD)
1+
$1.83000
10+
$1.66400
25+
$1.56160
50+
$1.49380
100+
$1.42590
250+
$1.29012
500+
$1.18826
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PEC21SACN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 21
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.320" (8.13mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
5-534978-4
TE Connectivity AMP Connectors
2-178841-1
Preci-Dip
800-80-007-40-001101
3M
929836-01-26
TE Connectivity AMP Connectors
4-103321-0
Samtec Inc.
TMM-117-01-G-S-RA
Samtec Inc.
TSM-109-03-L-SV-A

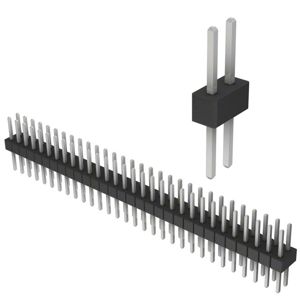

Sullins Connector Solutions
PEC30DABN

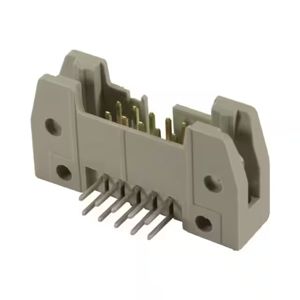

HARTING
