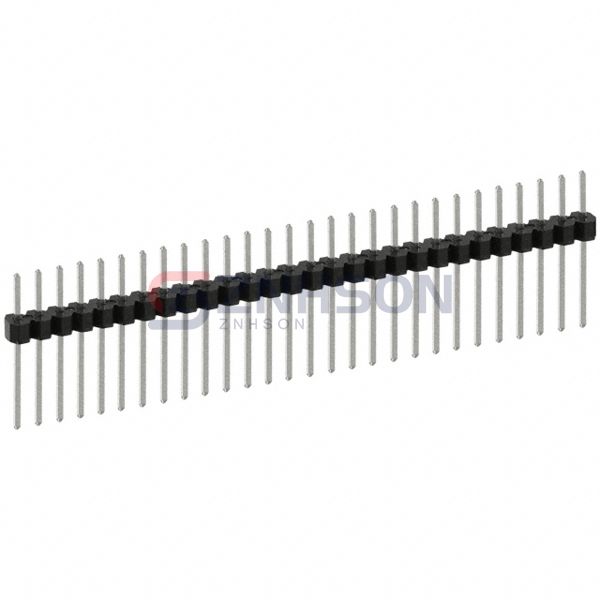

PEC28SADN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 28POS 2.54MM
$2.60
Available to order
Reference Price (USD)
1+
$2.60000
10+
$2.35500
25+
$2.21120
50+
$2.11500
100+
$2.01880
250+
$1.82652
500+
$1.68232
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Ensure seamless connectivity with PEC28SADN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 28
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.420" (10.67mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
