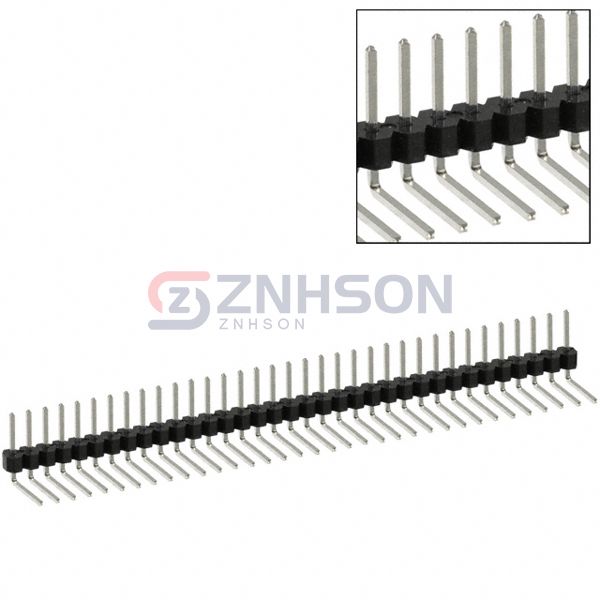

PEC35SBCN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER R/A 35POS 2.54MM
$4.03
Available to order
Reference Price (USD)
1+
$4.03000
10+
$3.86400
25+
$3.54200
50+
$3.38100
100+
$3.22000
250+
$2.81752
500+
$2.73700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality PEC35SBCN Sullins Connector Solutions Rectangular Connectors - Headers, Male Pins, designed for reliable and secure connections in various electronic applications. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for industrial, automotive, and consumer electronics. Whether you need robust headers or precision male pins, our products ensure optimal performance. Contact us today for a quote and let us meet your connectivity needs!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 35
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.300" (7.62mm)
- Overall Contact Length: -
- Insulation Height: 0.140" (3.56mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
