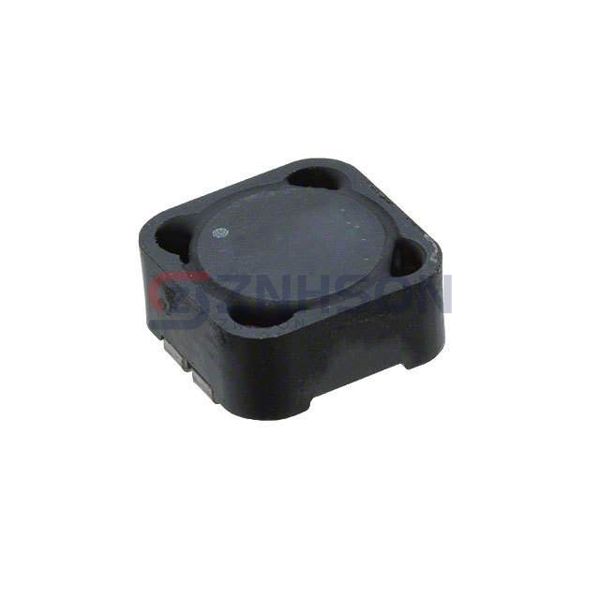

PF0552.222NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 2.2UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality PF0552.222NLT Pulse Electronics Power Inductors, Coils, and Chokes designed for optimal performance in various electronic applications. Our Arrays and Signal Transformers offer exceptional efficiency, durability, and precision, making them ideal for telecommunications, automotive, and industrial uses. With advanced features like low resistance and high-frequency stability, these components ensure reliable operation in demanding environments. Interested in learning more? Contact us today for a customized quote and technical support!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 2.2 µH
- Inductance - Connected In Series: 8.8 µH
- Tolerance: ±20%
- Current Rating - Parallel: 11.1 A
- Current Rating - Series: 5.6 A
- Current Saturation - Parallel: 15 A
- Current Saturation - Series: 7.5 A
- DC Resistance (DCR) - Parallel: 3.9mOhm Max
- DC Resistance (DCR) - Series: 16mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
Related Products
Pulse Electronics Power
PF0553.472NL
Pulse Electronics Power
P0399NLT
COILCRAFT
MSD1278H-223MED
Eaton - Electronics Division
CTX02-13665
Eaton - Electronics Division
CTX150-2A-R
Bourns Inc.
PM3604-150-B
Würth Elektronik

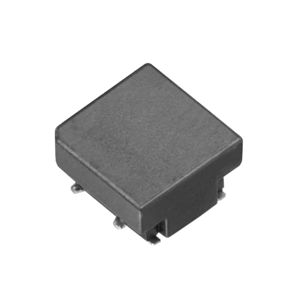

7448845047
Pulse Electronics Power

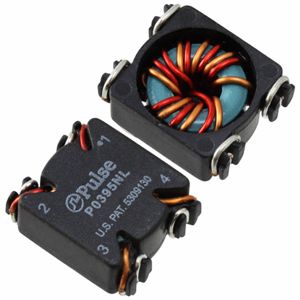

P0398NLT
Eaton - Electronics Division

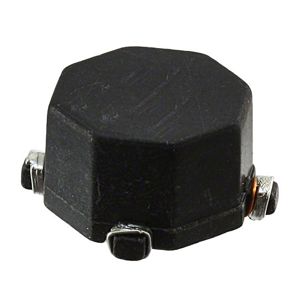

CTX50-2A-R
