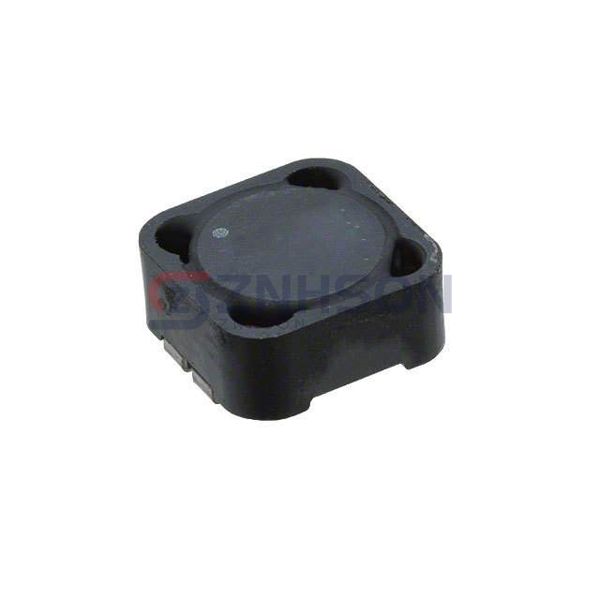

PF0552.223NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 22UH SMD
$2.44
Available to order
Reference Price (USD)
1+
$2.44000
500+
$2.4156
1000+
$2.3912
1500+
$2.3668
2000+
$2.3424
2500+
$2.318
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with PF0552.223NLT Pulse Electronics Power Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 22 µH
- Inductance - Connected In Series: 89 µH
- Tolerance: ±20%
- Current Rating - Parallel: 4.6 A
- Current Rating - Series: 2.3 A
- Current Saturation - Parallel: 4.8 A
- Current Saturation - Series: 2.4 A
- DC Resistance (DCR) - Parallel: 35mOhm Max
- DC Resistance (DCR) - Series: 140mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
