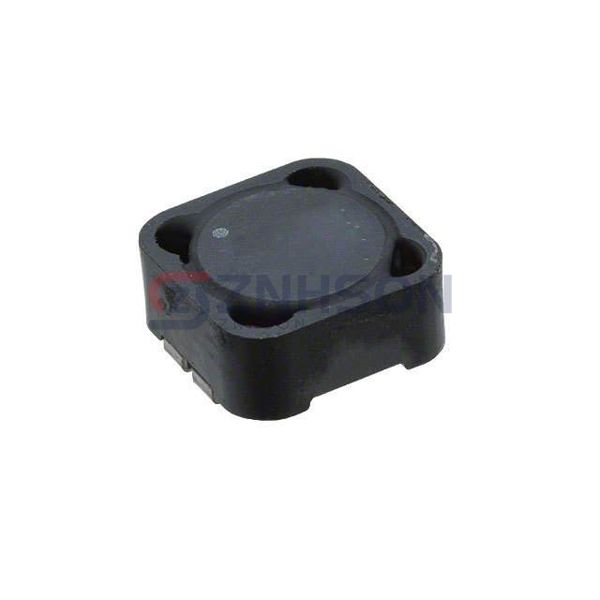

PF0552.684NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 680UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0552.684NLT Pulse Electronics Power Inductors, Coils, and Chokes deliver exceptional performance in Arrays and Signal Transformers applications. With features like high current handling and minimal signal distortion, they are ideal for audio, video, and data transmission systems. Ready to take your projects to the next level? Request a sample or inquire about bulk pricing today!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 680 µH
- Inductance - Connected In Series: 2.7 mH
- Tolerance: ±20%
- Current Rating - Parallel: 810 mA
- Current Rating - Series: 400 mA
- Current Saturation - Parallel: 860 mA
- Current Saturation - Series: 430 mA
- DC Resistance (DCR) - Parallel: 1Ohm Max
- DC Resistance (DCR) - Series: 4.1Ohm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.236" (6.00mm)
Related Products
Bourns Inc.
PM3602-33-B
Bourns Inc.
PM3604-8-B
Signal Transformer
SCRHB125B-1014
Signal Transformer
SCX147-1R2
Pulse Electronics Power
PF0553.683NL
Signal Transformer
SCRHB125B-8220
Signal Transformer

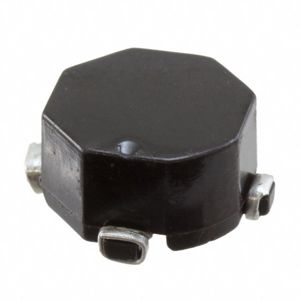

SCX147-8R0
Signal Transformer

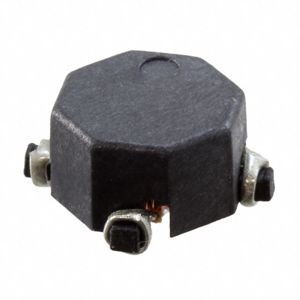

SCX114-4R7
COILCRAFT

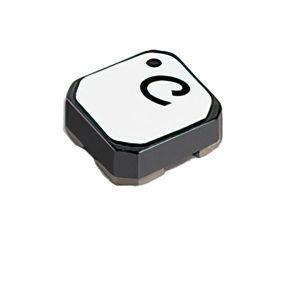

GA3250-BEC
