PF0553.223NL
Pulse Electronics Power
Pulse Electronics Power

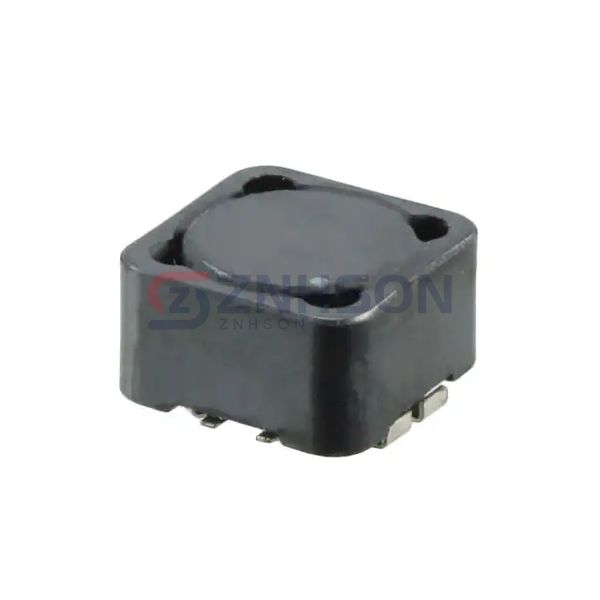

INDUCT ARRAY 2 COIL 23UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0553.223NL Pulse Electronics Power Inductors, Coils, and Chokes are your go-to solution for high-performance Arrays and Signal Transformers. Featuring excellent EMI suppression and wide operating temperature ranges, they are perfect for IoT devices, automotive systems, and industrial automation. Let us help you find the perfect fit for your needs contact us today for expert advice and a detailed proposal!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 23 µH
- Inductance - Connected In Series: 92 µH
- Tolerance: ±20%
- Current Rating - Parallel: 3.9 A
- Current Rating - Series: 2 A
- Current Saturation - Parallel: 7.6 A
- Current Saturation - Series: 3.8 A
- DC Resistance (DCR) - Parallel: 39mOhm Max
- DC Resistance (DCR) - Series: 160mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.343" (8.71mm)
