PF0553.684NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 680UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PF0553.684NLT Pulse Electronics Power Inductors, Coils, and Chokes deliver exceptional performance in Arrays and Signal Transformers applications. With features like high current handling and minimal signal distortion, they are ideal for audio, video, and data transmission systems. Ready to take your projects to the next level? Request a sample or inquire about bulk pricing today!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 680 µH
- Inductance - Connected In Series: 2.7 mH
- Tolerance: ±20%
- Current Rating - Parallel: 750 mA
- Current Rating - Series: 380 mA
- Current Saturation - Parallel: 1.4 A
- Current Saturation - Series: 690 mA
- DC Resistance (DCR) - Parallel: 1.1Ohm Max
- DC Resistance (DCR) - Series: 4.3Ohm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.315" (8.00mm)
Related Products
Pulse Electronics Power
PF0552.102NLT
Bourns Inc.
PM3604-50-B
Signal Transformer
SCRHB124B-1024
Signal Transformer
SCX147-200
Eaton - Electronics Division
CTX68-2A-R
Pulse Electronics Power

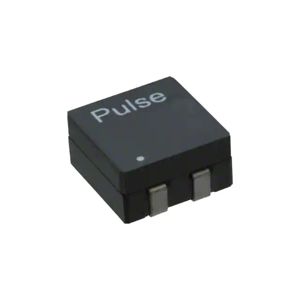

PA0766.281NLT
Signal Transformer

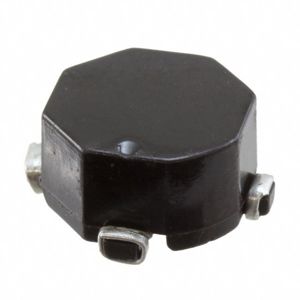

SCX147-201
Eaton - Electronics Division

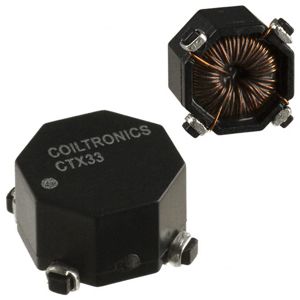

CTX33-1A-R
