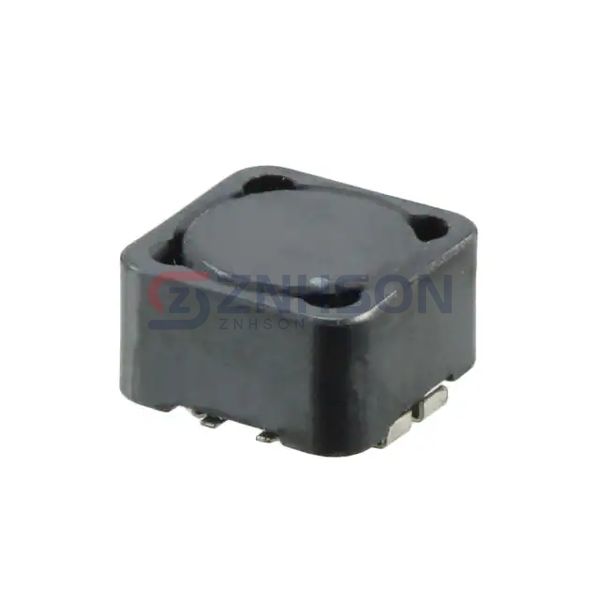

PF0553.822NL
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 8.9UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with PF0553.822NL Pulse Electronics Power Inductors, Coils, and Chokes, specifically designed for Arrays and Signal Transformers. These components offer high reliability, low DCR, and superior frequency response, making them suitable for telecommunications and computing applications. For more information or to place an order, reach out to our sales team now!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 8.9 µH
- Inductance - Connected In Series: 35 µH
- Tolerance: ±20%
- Current Rating - Parallel: 6.2 A
- Current Rating - Series: 3.1 A
- Current Saturation - Parallel: 12 A
- Current Saturation - Series: 6.1 A
- DC Resistance (DCR) - Parallel: 15mOhm Max
- DC Resistance (DCR) - Series: 62mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.343" (8.71mm)
