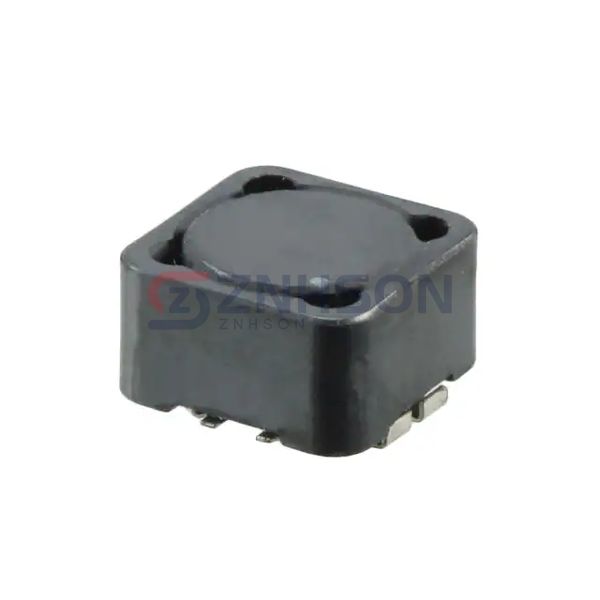

PF0553.823NLT
Pulse Electronics Power
Pulse Electronics Power
INDUCT ARRAY 2 COIL 80UH SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with PF0553.823NLT Pulse Electronics Power Inductors, Coils, and Chokes, perfect for Arrays and Signal Transformers. These components provide excellent impedance matching and noise filtering, essential for high-speed digital and analog circuits. For tailored solutions and unbeatable service, contact us now and let s discuss your requirements!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 80 µH
- Inductance - Connected In Series: 320 µH
- Tolerance: ±20%
- Current Rating - Parallel: 2 A
- Current Rating - Series: 1 A
- Current Saturation - Parallel: 4.1 A
- Current Saturation - Series: 2 A
- DC Resistance (DCR) - Parallel: 140mOhm Max
- DC Resistance (DCR) - Series: 570mOhm Max
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
- Height: 0.315" (8.00mm)
