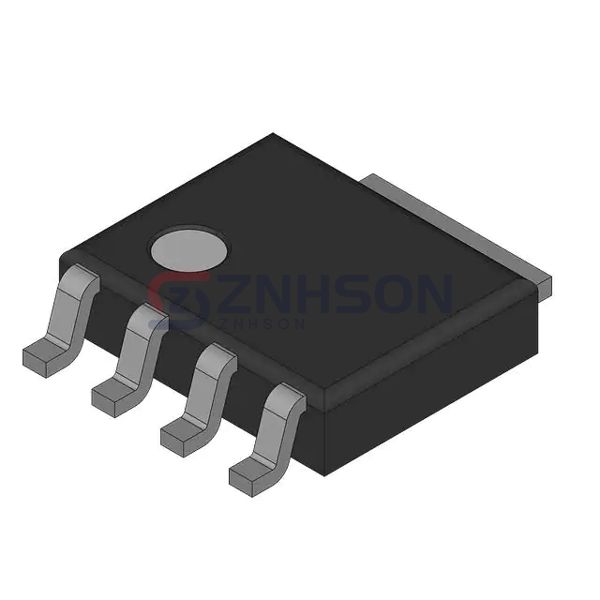

PH3120L,115
NXP Semiconductors
NXP Semiconductors
NEXPERIA PH3120L - 100A, 20V, 0.
$0.25
Available to order
Reference Price (USD)
1+
$0.25000
500+
$0.2475
1000+
$0.245
1500+
$0.2425
2000+
$0.24
2500+
$0.2375
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with PH3120L,115 by NXP Semiconductors, a top-tier choice in Discrete Semiconductor Products. Specifically crafted for Transistors - FETs, MOSFETs - Single applications, this product offers superior power handling and energy efficiency. Key features include high voltage tolerance, minimal power loss, and robust durability, making it perfect for switching and amplification tasks. Whether for industrial machinery, renewable energy systems, or portable devices, PH3120L,115 ensures reliable operation. Ready to integrate this component into your project? Submit an inquiry now for pricing and availability!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 100A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 2.65mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 48.5 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4457 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 62.5W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK56, Power-SO8
- Package / Case: SC-100, SOT-669
