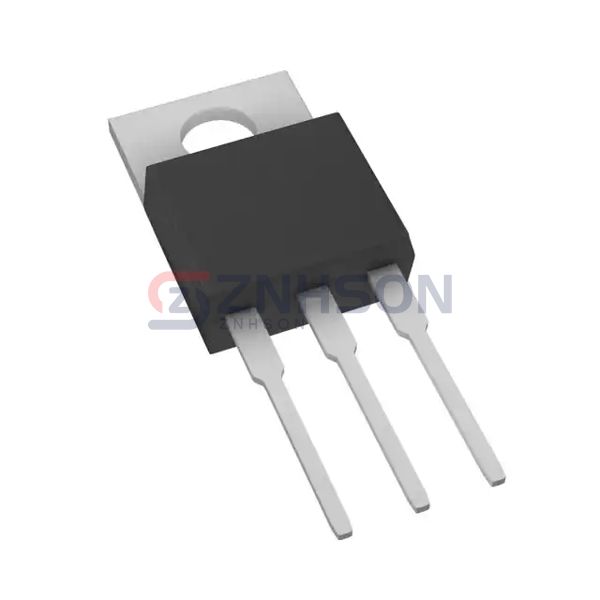

PJP7NA60_T0_00001
Panjit International Inc.
Panjit International Inc.
600V N-CHANNEL MOSFET
$1.49
Available to order
Reference Price (USD)
1+
$1.49000
500+
$1.4751
1000+
$1.4602
1500+
$1.4453
2000+
$1.4304
2500+
$1.4155
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover PJP7NA60_T0_00001, a versatile Transistors - FETs, MOSFETs - Single solution from Panjit International Inc., a trusted name in Discrete Semiconductor Products. This MOSFET combines high power density with low on-resistance, perfect for compact and energy-efficient designs. Applications include solar inverters, electric vehicles, and wearable technology. Interested in this innovative component? Send us your inquiry now for more information!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3.5A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 15.2 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 723 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 145W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
