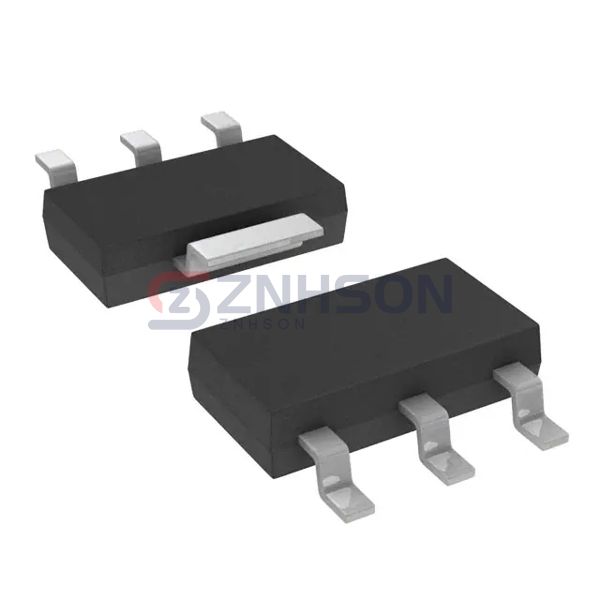

PJW5N10A_R2_00001
Panjit International Inc.
Panjit International Inc.
100V N-CHANNEL ENHANCEMENT MODE
$0.55
Available to order
Reference Price (USD)
1+
$0.55000
500+
$0.5445
1000+
$0.539
1500+
$0.5335
2000+
$0.528
2500+
$0.5225
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your electronic applications with PJW5N10A_R2_00001, a reliable Transistors - FETs, MOSFETs - Single by Panjit International Inc.. As a leader in Discrete Semiconductor Products, we offer components with low gate charge, high breakdown voltage, and excellent switching performance. Whether for aerospace, robotics, or energy systems, PJW5N10A_R2_00001 meets the highest standards. Contact our team today for expert advice and competitive pricing!
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 3.5A (Ta), 5A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 115mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 20 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1413 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.1W (Ta), 5.2W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-223
- Package / Case: TO-261-4, TO-261AA
Related Products
Alpha & Omega Semiconductor Inc.
AON3402
Infineon Technologies
IRFS3006TRLPBF
Toshiba Semiconductor and Storage
TK33S10N1L,LQ
Renesas Electronics America Inc
NP50P04SDG-E1-AY
onsemi
FDB390N15A
Infineon Technologies
IRLB4132PBF
Vishay Siliconix
SIR622DP-T1-RE3
Nexperia USA Inc.
PMV48XP,215
Vishay Siliconix

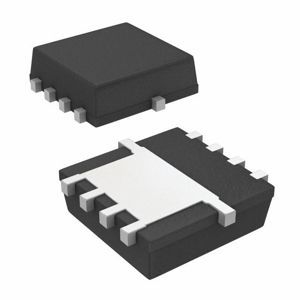

SISA24DN-T1-GE3
